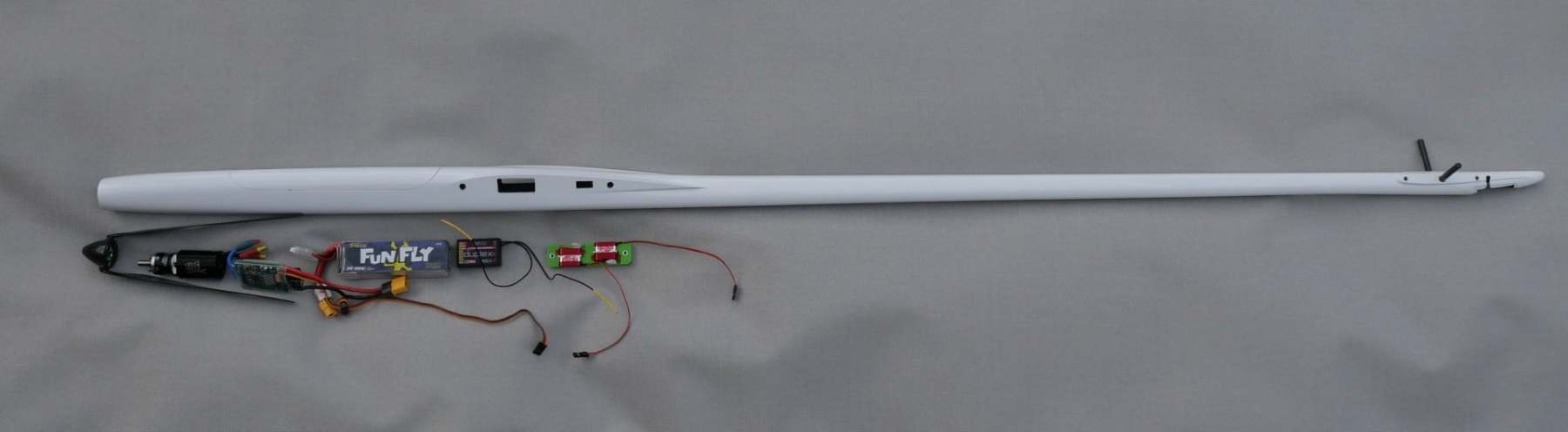

The Quantum 2 DP electro model uses the same support surfaces and V-tail as the Quantum F3F/ F3B version. Although the fuselage is designed to be very slim, it can easily hold up to 4S Lipo.
The diameter of the cone is 30 mm which allows the use of a motor unit with a maximum diameter of 28 mm. The servos for the V-tail are mounted on a special frame, which is fixed with two M3 screws from the bottom of the fuselage and is located behind the joiner in the area of the flaps. The receiver is located under the wing joiner.
Specifications
| Wing Span | 2960 mm |
| Length | 1450 mm |
| Wing area (projected) | 56.1 dm2 |
| Tail area(projected) | 5.7 dm2 |
| Aspect Ratio | 15.54 |
| Weight | Starting from 2250 gr |
| V-tail | 100° |
| FAI area | 61.8 dm2 |
| Max FAI weight | 4635 gr |
| CG | 103,7 mm |
Colors
Prices
| Carbon C160 | 1540 € |
| Carbon C 160 + D box C160 | 1600 € |
| Double carbon C 80 | 1680 € |
| Double carbon C160 / C160 | 1640 € |
| Transport bag | 50 € |
| Instalace IDS pro KST X 10 / X 10 Mini | 140 € |
| Installation of servo cables | 45 € |
Spare parts
| Fuselage | 250 € |
| V-tail | 120 € |
| Wing joiner | 45 € |
| Wing | On request |
Do you like the Quantum 2 Electric model?
You can order directly from this web. Just send us an email with your order. Don't forgot mention in your email your color scheme, layout and others important information.
Contact us

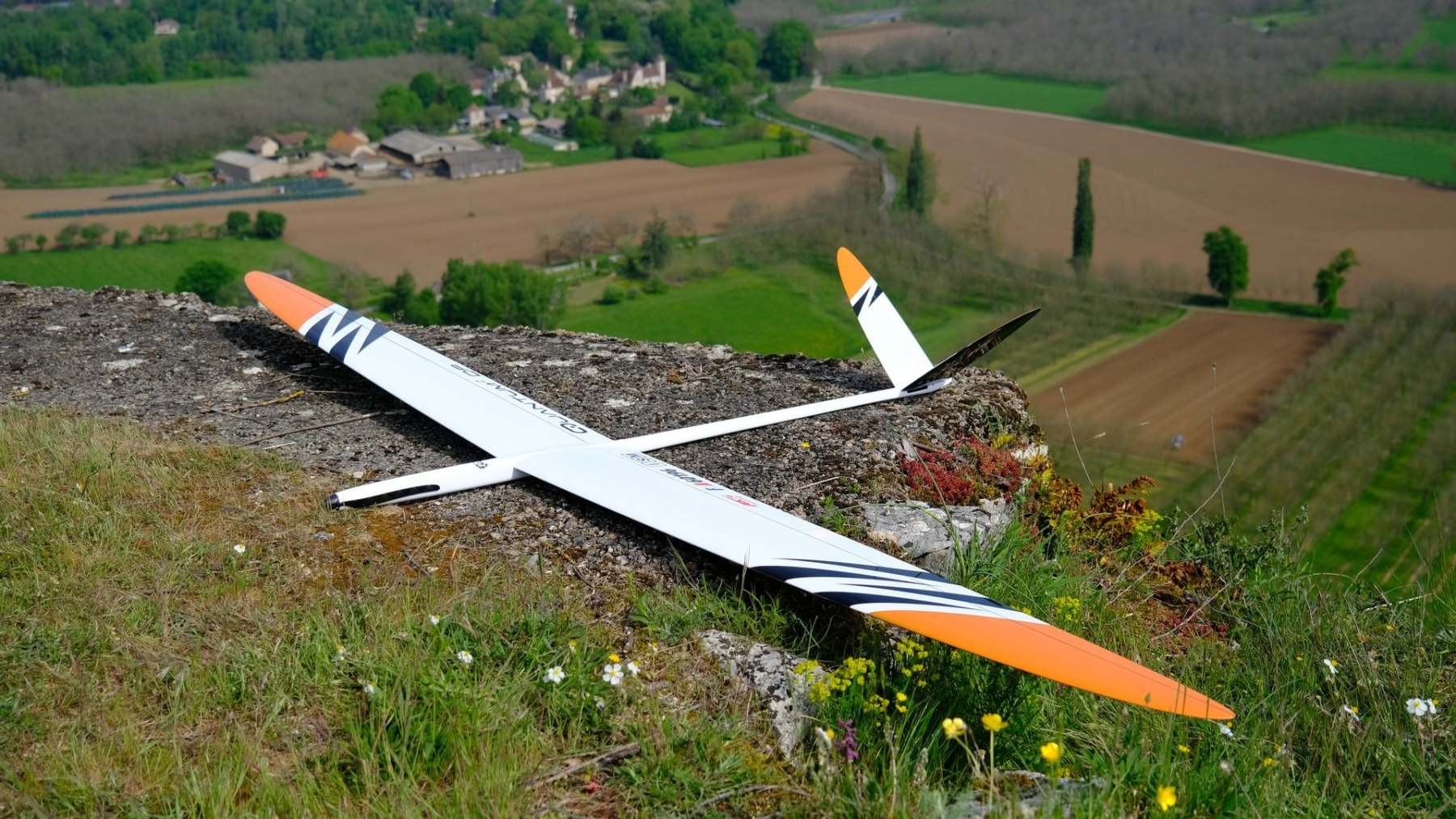

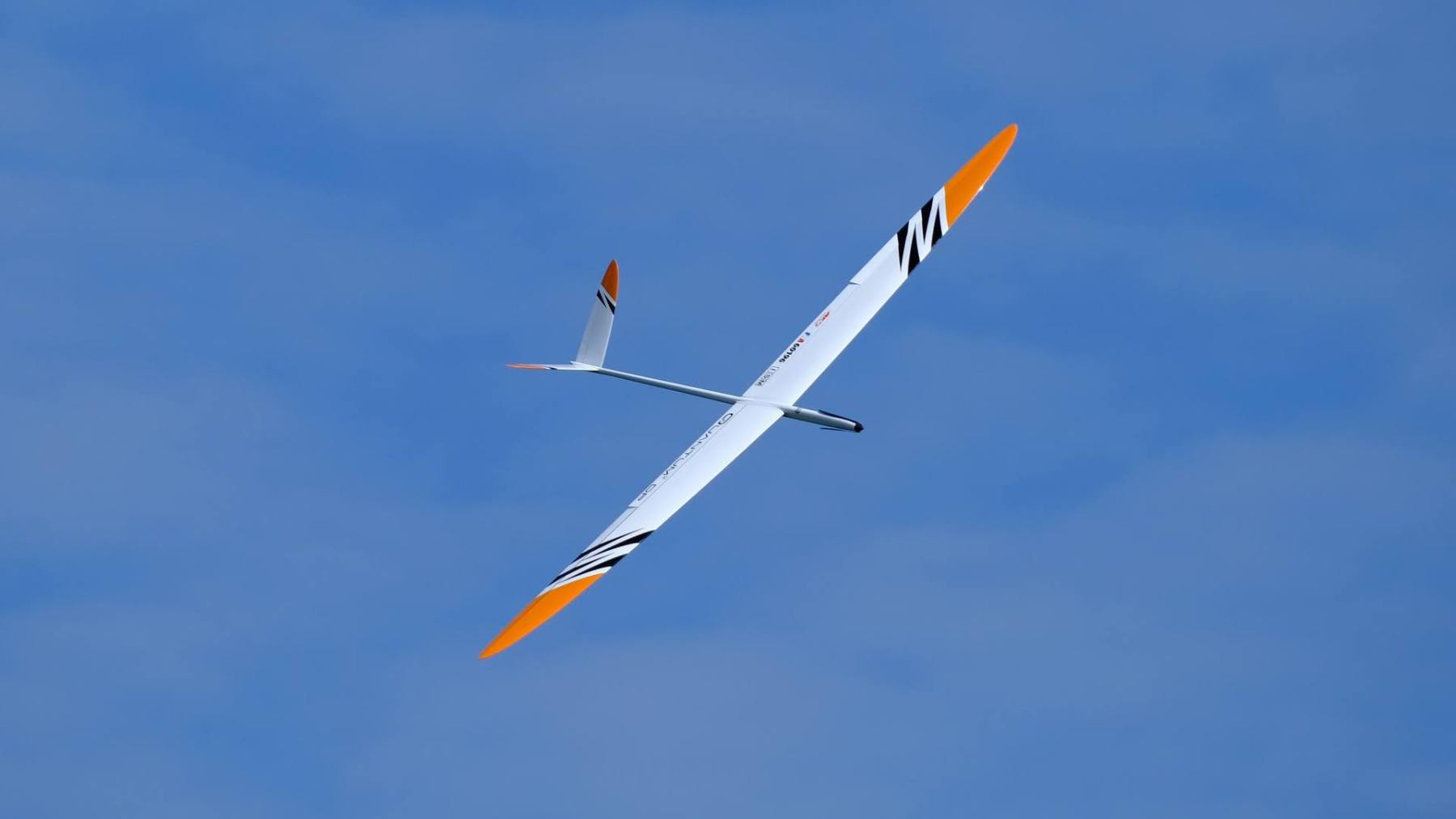

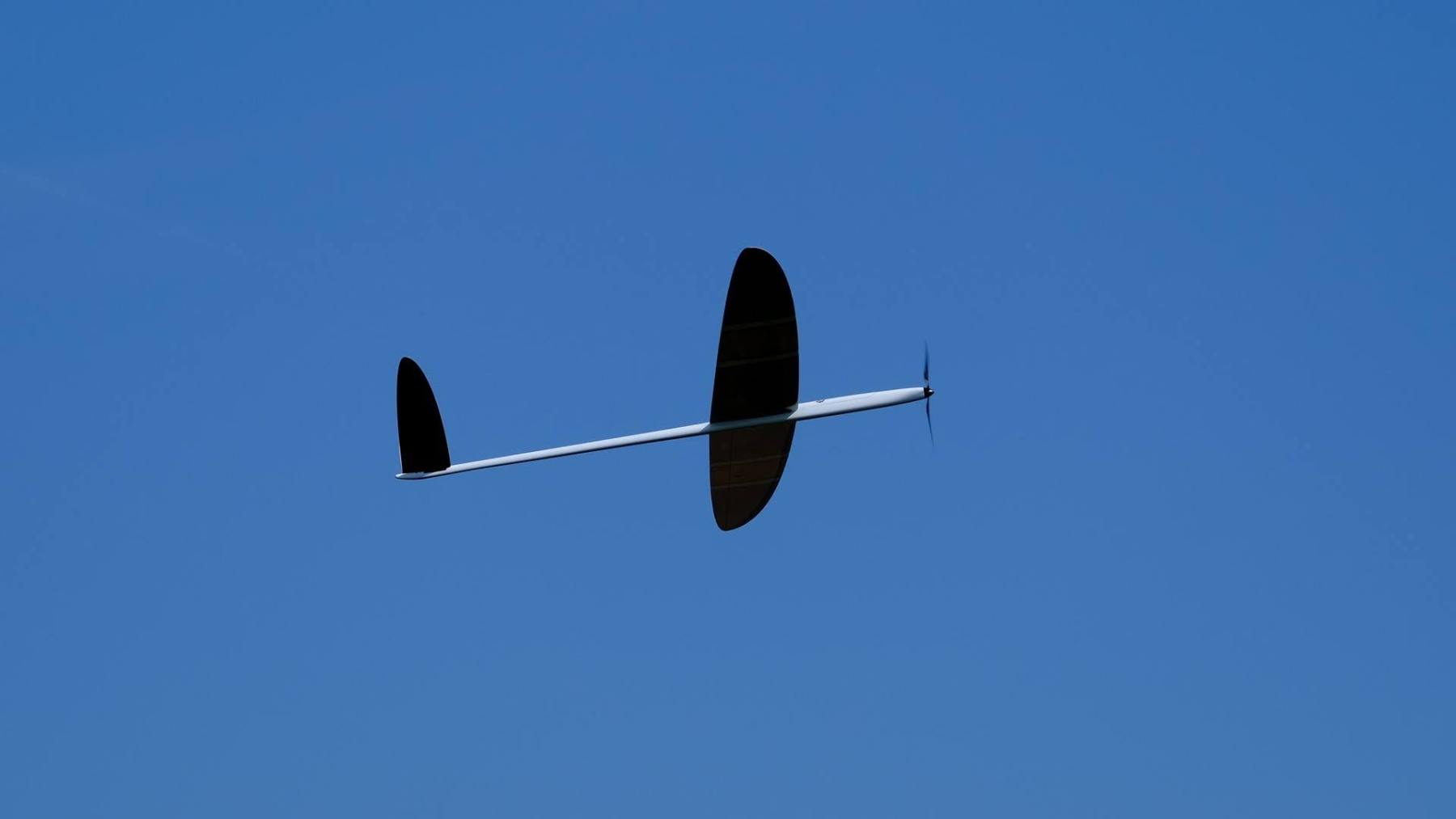

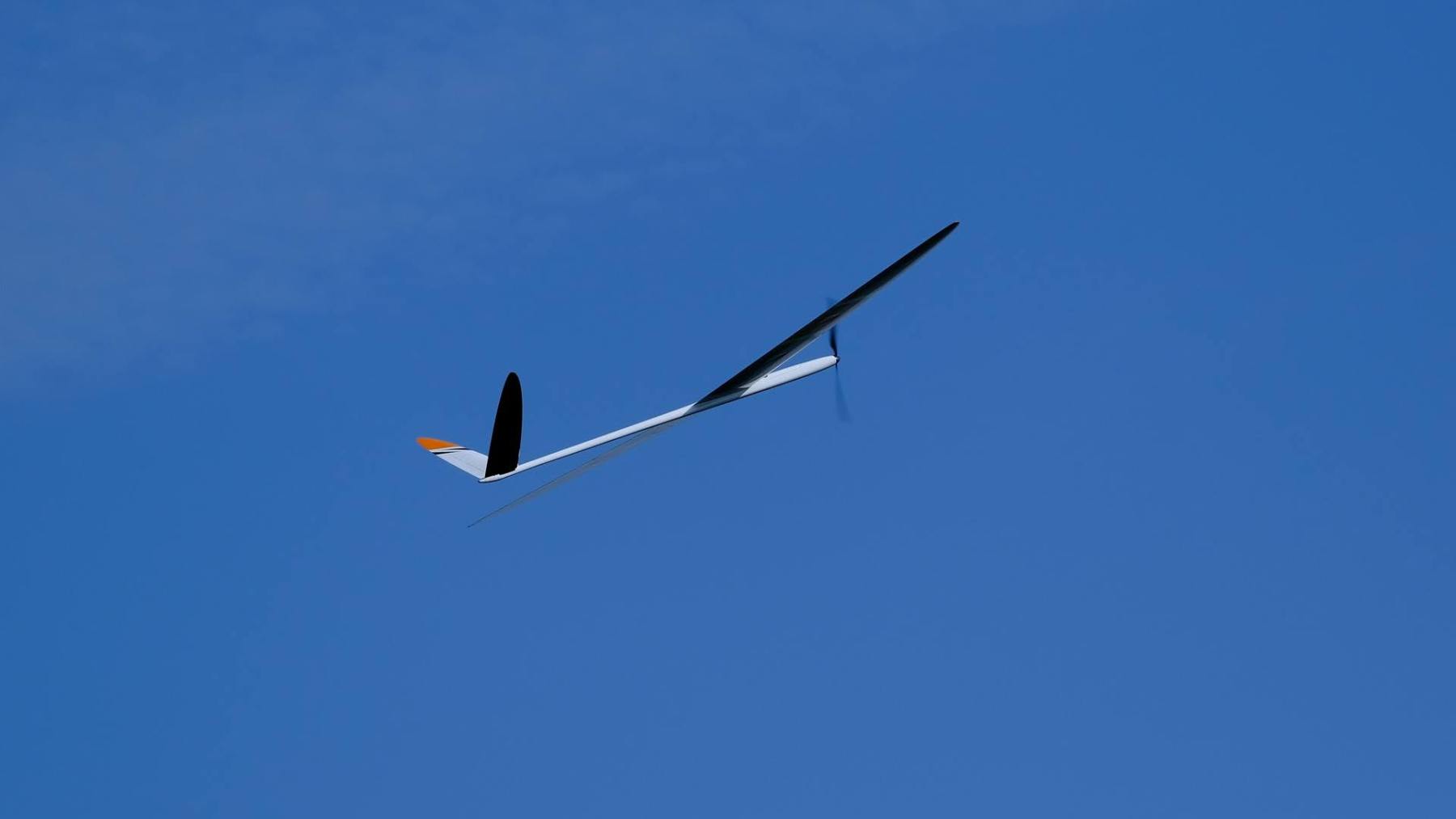

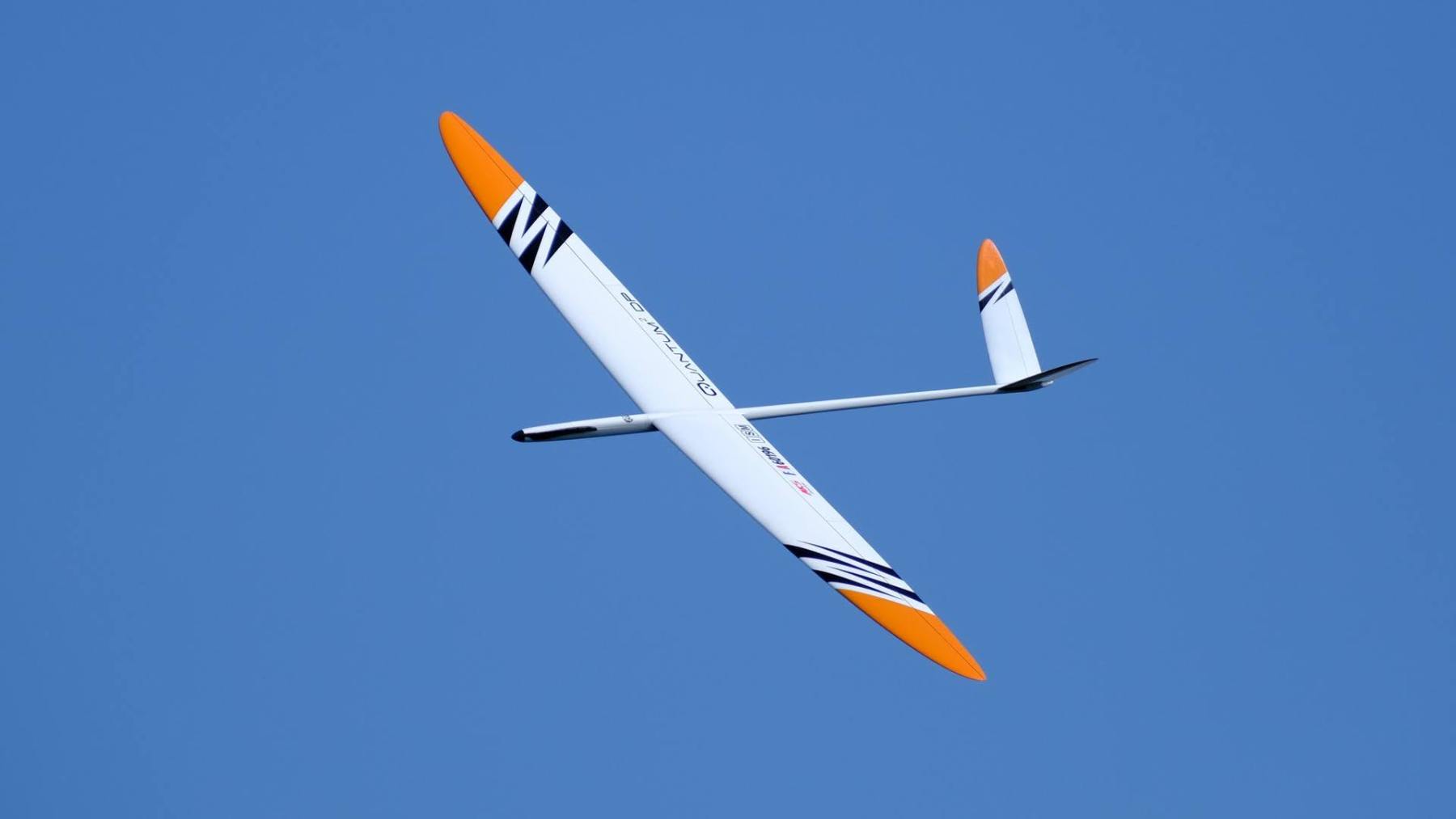

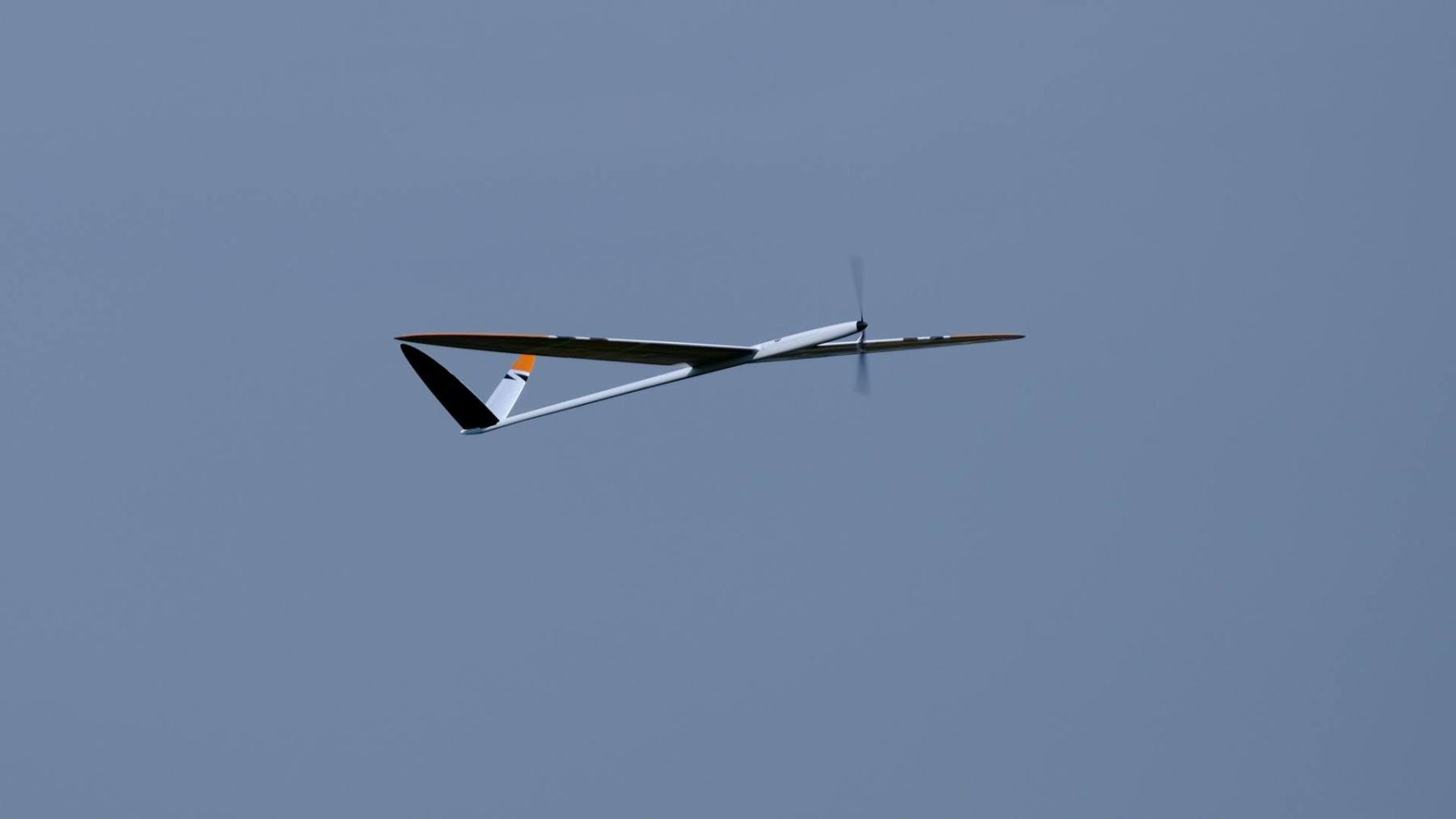

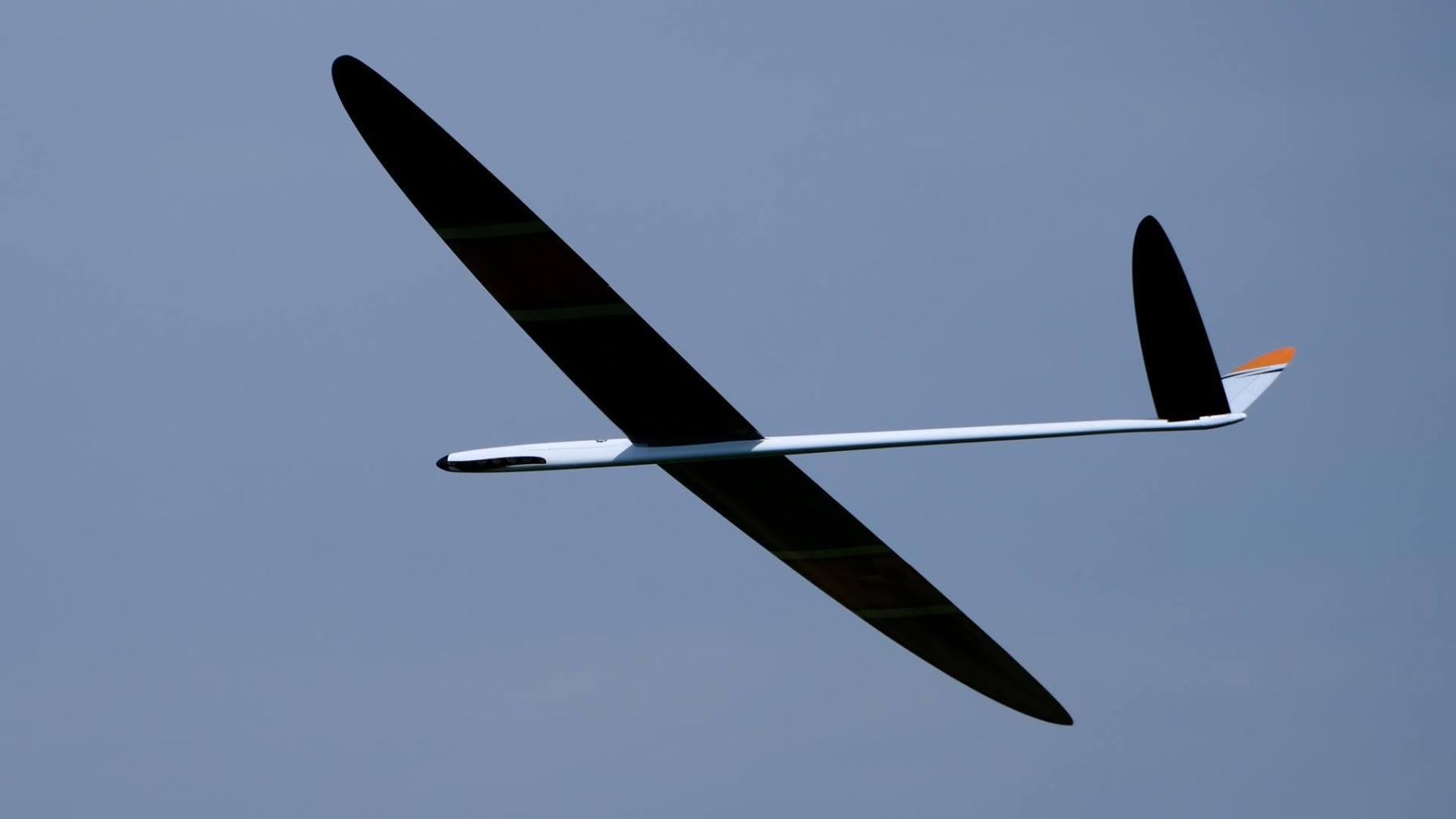

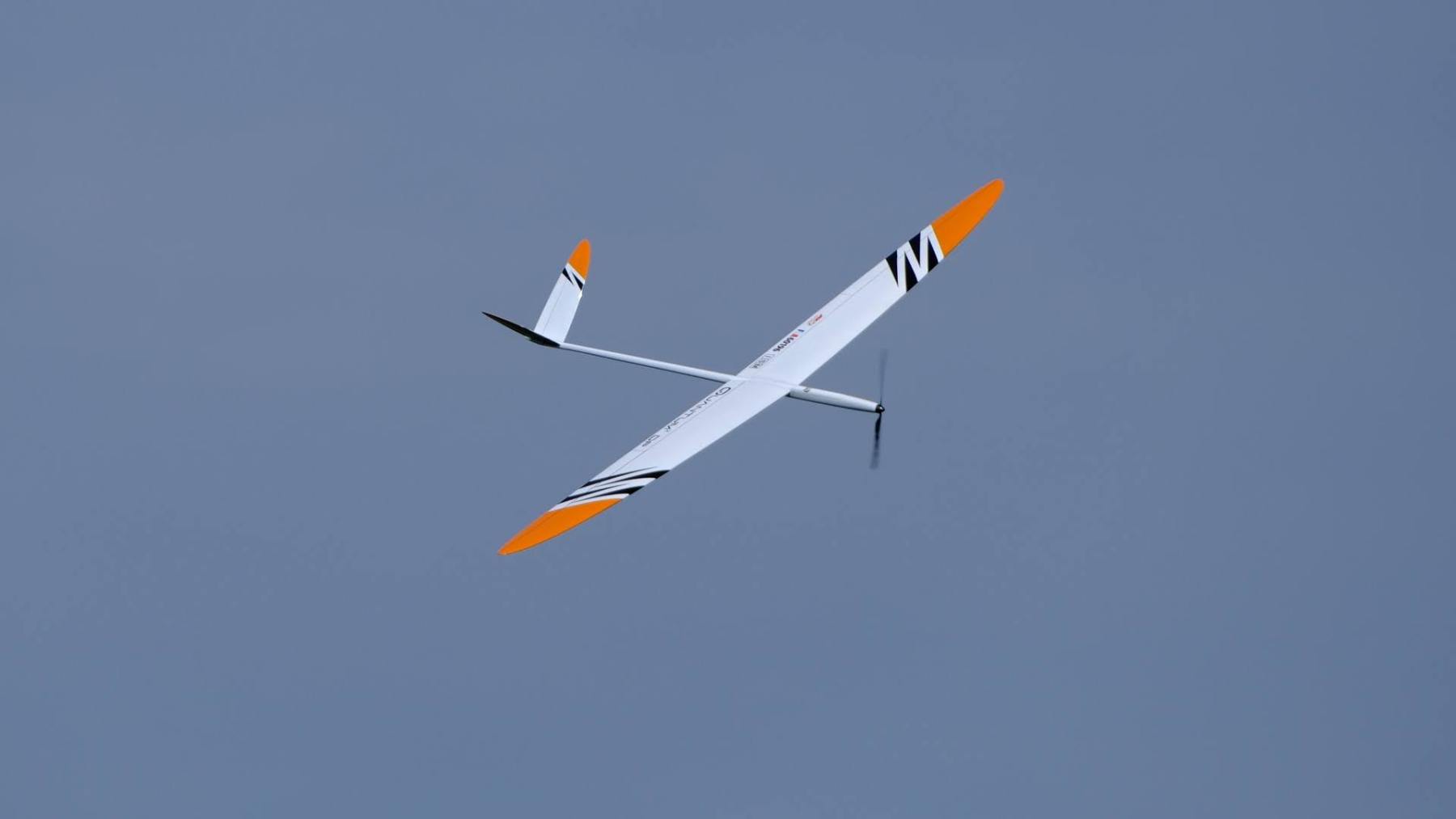

Photogallery Quantum 2 Electric
The author of these photos is Pierre Rondell. Thanks for providing the photos.
